ONETECH Wooden Frame Painting Chamber with Conveyor System

The ONETECH Frame Finishing Line with Conveyor System is a comprehensive industrial solution designed for high-performance application of paints, varnishes, and coatings to wooden frame profiles in production environments. Engineered for continuous operation, the line delivers exceptional throughput, uniform coating quality, and consistent repeatability — making it ideal for window and door manufacturers, as well as furniture and facade producers.

Key Features

• High-volume output – Up to 1,500 m² or 2,500 window units per shift (two-shift operation)
• Large-part capability – Handles workpieces up to 2200 mm in height and 3000 mm in depth, with a maximum weight of 50 kg
• Automated material handling – P&F overhead conveyor ensures smooth, continuous workpiece transport
• Dual painting chambers – Two spraying booths with integrated filtration and ventilation for maximum flexibility
• Tunnel-type drying – IR post-curing zone ensures fast, even drying and prevents wood defects
• Dedicated small-parts booth – Separate spraying station for smaller components, improving overall efficiency
• Precise air supply – Hot-water heated air preparation and delivery system for stable coating conditions

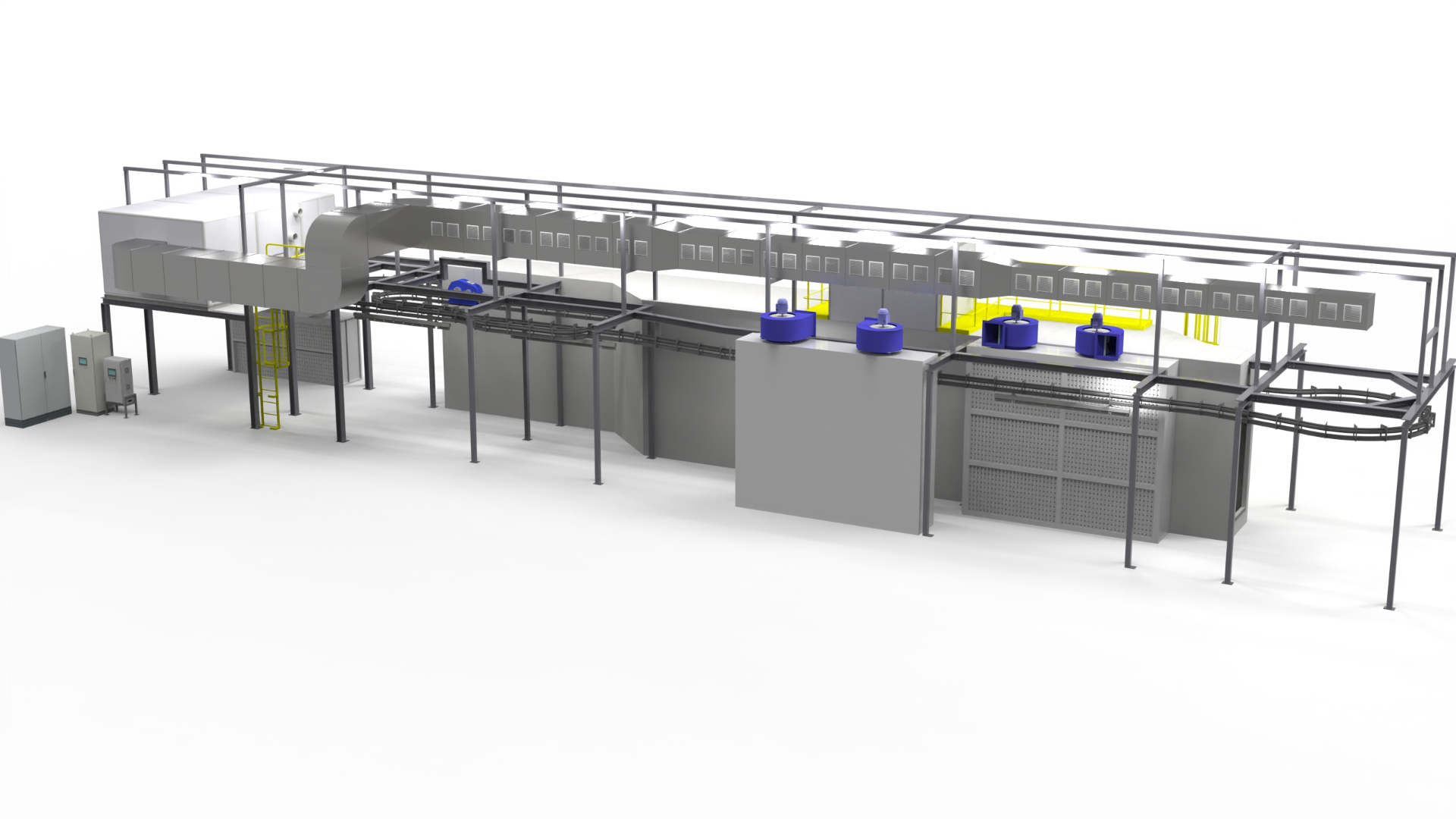

Complete Line Configuration

The finishing line consists of the following integrated modules:

1. Clean Room (Surface Preparation Area)

A dedicated clean room for workpiece preparation prior to coating. This ensures that dust and contaminants are removed, guaranteeing optimal surface quality and coating adhesion.

2. P&F Automatic Conveyor System

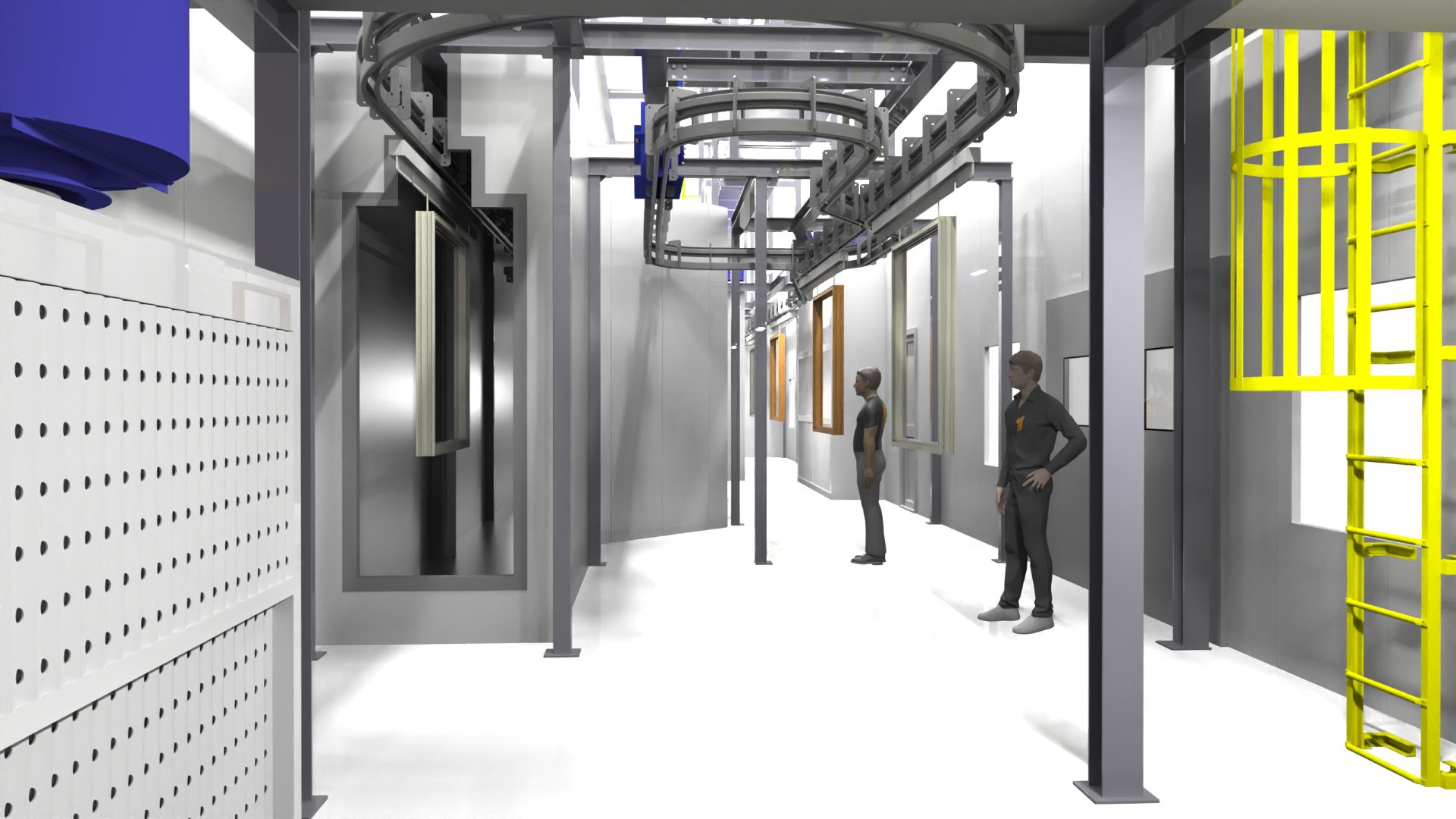

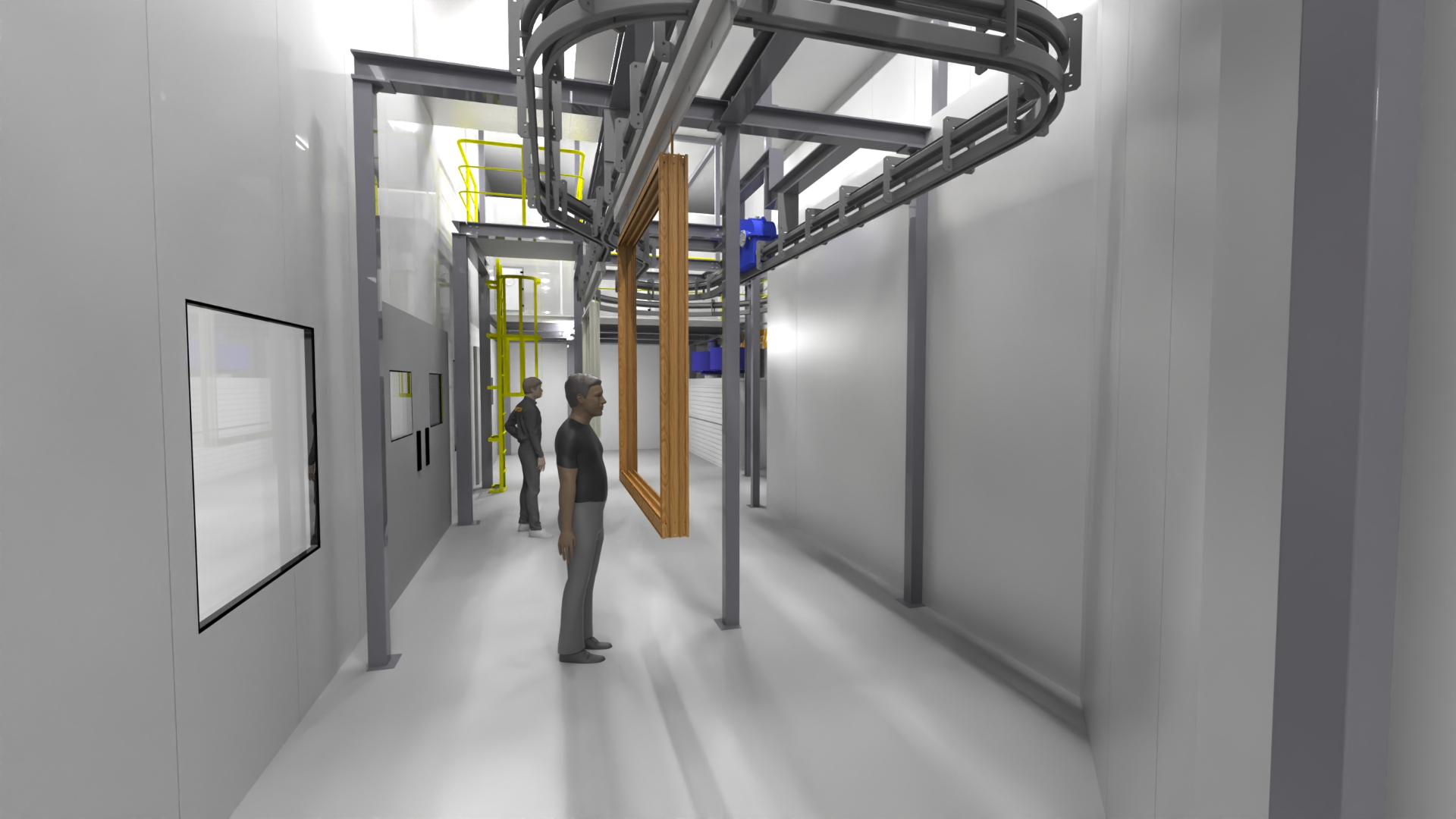

An automated P&F (Power & Free) overhead conveyor that seamlessly transports workpieces through the entire finishing cycle — from preparation, through painting and drying, to final unloading. The system ensures synchronized material flow and minimizes manual handling.

3. Two Main Painting Chambers

Equipped with advanced filtration and ventilation systems, the two spraying booths provide efficient overspray capture, a clean and contaminant-free painting environment, flexibility for different coating types and colors, and minimal downtime between color changes.

4. Tunnel-Type Drying Chamber with IR Post-Curing Zone

The drying tunnel features an integrated infrared (IR) zone for accelerated post-curing. Benefits include faster throughput, reduced risk of wood warping or deformation, energy-efficient drying process, and consistent finish quality across all workpieces.

5. Additional Painting Booth for Small Components

A separate, dedicated spraying chamber for painting smaller parts and accessories. This allows the main painting chambers to focus on large frame profiles, significantly improving overall line efficiency and reducing bottlenecks.

6. Air Preparation and Supply System

The line includes a centralized air handling unit that conditions and delivers air to all painting and drying zones. Heating is provided by a hot-water system, ensuring stable and consistent air temperature, optimal atomization and coating flow, and reliable operation even in varying ambient conditions.

Technical Specifications

• Productivity (two-shift operation): 1,500 m² per shift or 2,500 window units per shift
• Maximum workpiece height: 2200 mm
• Maximum workpiece depth: 3000 mm
• Maximum workpiece weight: 50 kg
• Conveyor type: P&F (Power & Free) overhead conveyor
• Number of painting chambers: 2 main chambers + 1 small-parts booth
• Drying type: Tunnel dryer with IR post-curing zone
• Air heating system: Hot-water heat exchanger
• Filtration: Integrated in all painting chambers

Applications

The ONETECH Frame Finishing Line is ideally suited for:

• Wooden window frames and sashes
• Door frames and panels
• Furniture components and moldings
• Facade elements and architectural joinery
• Small wooden parts and accessories

‍
